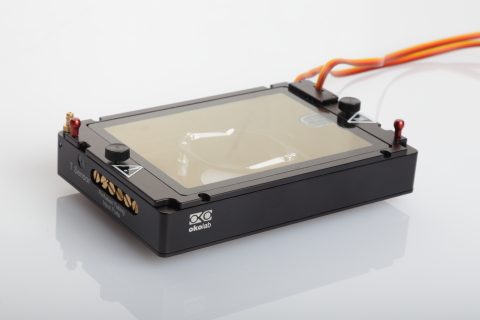

H301-MINI

Stage compatibility:
  • H301-MINI has the footprint of a Multi Well Plate
  • Fits in any stage equipped with MW holder
The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
Features:
  • Magnets allow easy interchange chamber inserts
  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available
H301-MINI - slim profile

Koehler illumination ?

With H301-MINI it is possible !

H301-MINI - perfusion holes

Perfusion ?

Each chamber features up to 12 holes for inlet and outler of perfusion tubings


Chamber Inserts and Sample Locks - magnetic

Different sample holder ?

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

Keep the sample in the correct position by using the Magnetic Locks





Available Inserts

1x35 single #1 35mm Petri-dish 1x35-M-single.JPG
1xGS-M-SINGLE #1 1x3in. chamberslide 1xGS-M-single.JPG
1xLABTEK-M-SINGLE #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M-single.JPG
1xLABTEK-II-M-SINGLE #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M-single.JPG
1x60-M-SINGLE #1 60mm Petri-dish 1x60-M-single.JPG
H301-MINI - Components
H301-MINI - Dimensions
H301-MINI - Magnetic Inserts
