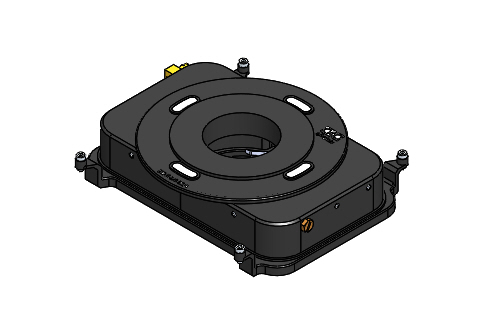

H201-LG-DLS

Compatible with Leica DLS module, it allows usage of illumination and detection lenses. Fits in the Super Z galvo stage, by replacing the Leica specimen holder

The chamber can fit:

35/60 mm Petri dishes

Features:

Compatible with Leica DLS module, it allows usage of illumination and detection lenses
Includes an objective collar for detection lenses Leica HC APO L 10x/0.3 W and Leica HC FLUOTAR L 25x/0.95 W
Spring locks hold Petri dishes, in correct position inside the chamber
Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
The chamber screws onto Super Z galvo stage
Chamber weight, 130 g.
To control the humidity into the chamber humidity module is recommended: HM-ACTIVE
