- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides

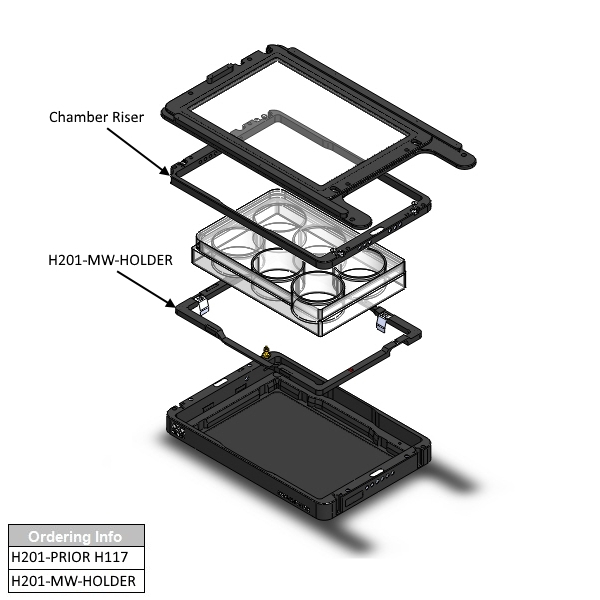

- 6-12-24-48-96 MW plates

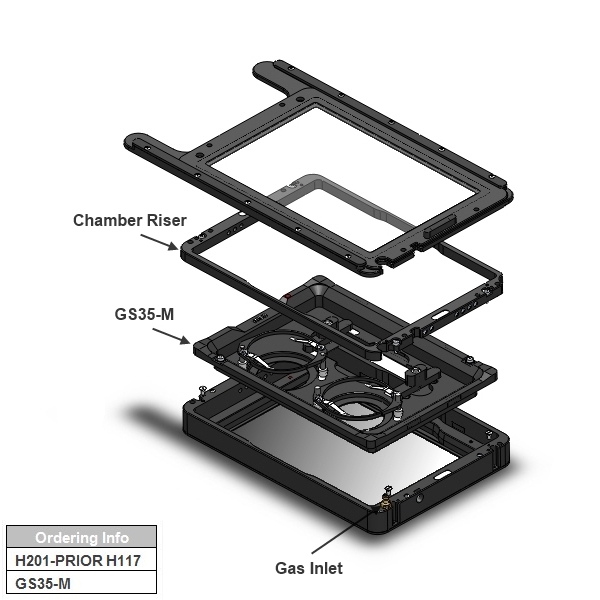

- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser
Koehler illumination ?

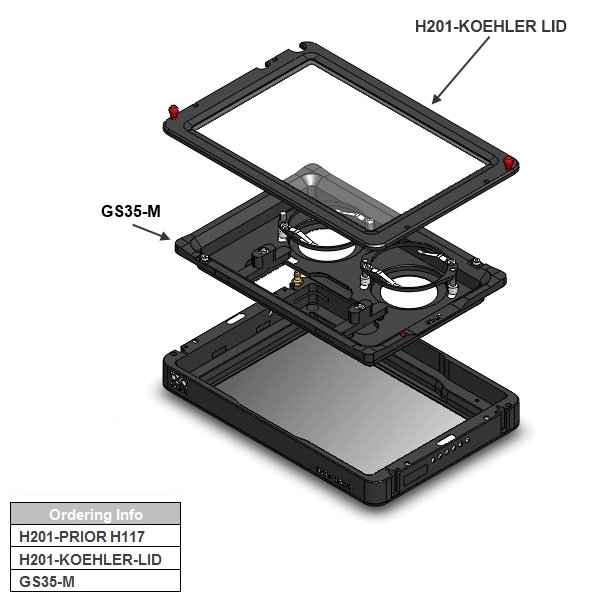

Remove the chamber riser and use the Koehler Lid
Each chamber features up to 12 holes for inlet and outler of perfusion tubings
Different sample holder ?
Change the chamber insert. It is a 5 seconds task with the magnetic sample holders
Keep the sample in the correct position by using the Magnetic Locks
