ENCLOSURE - EXAMPLES ON ZEISS

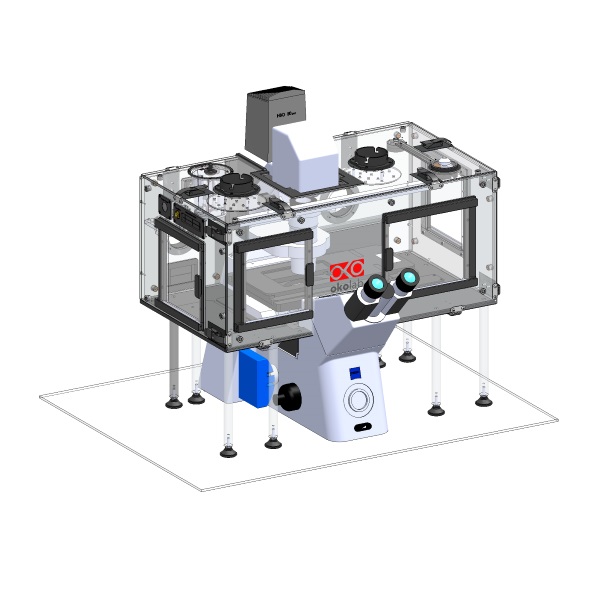

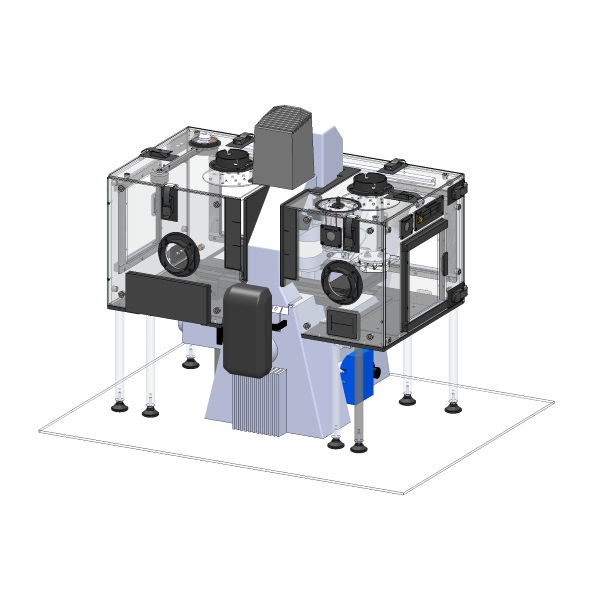

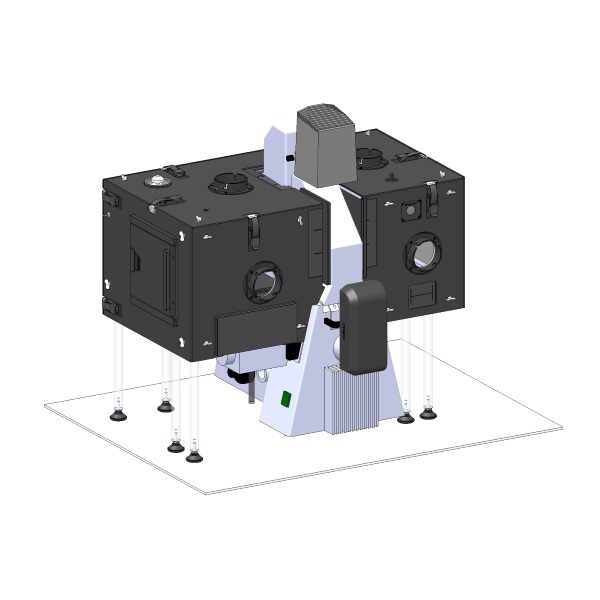

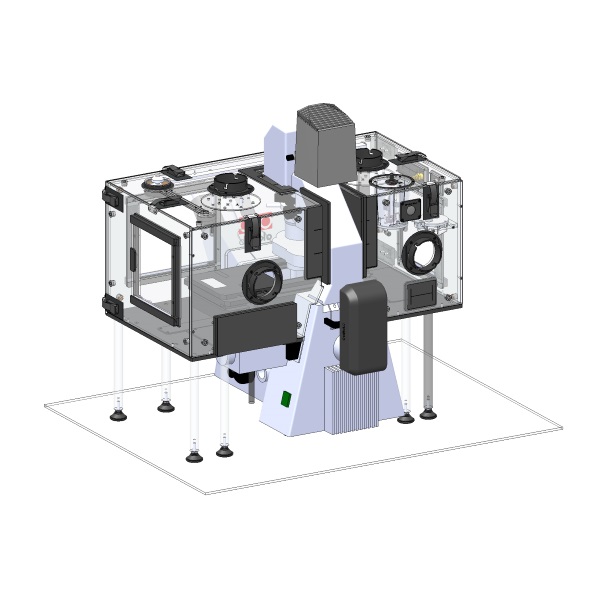

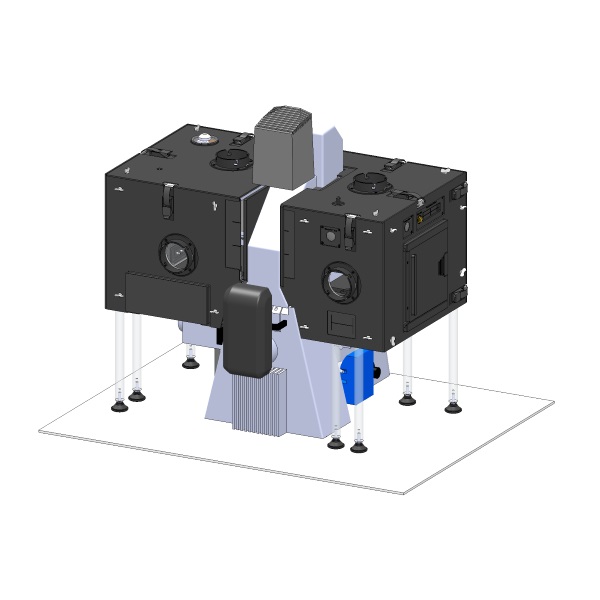

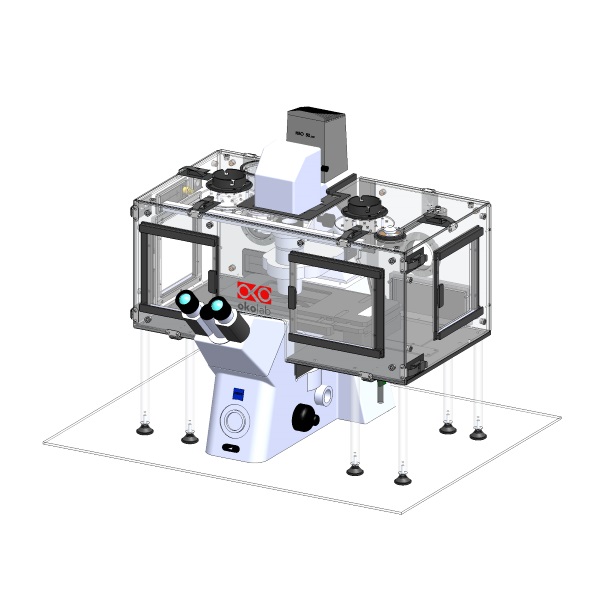

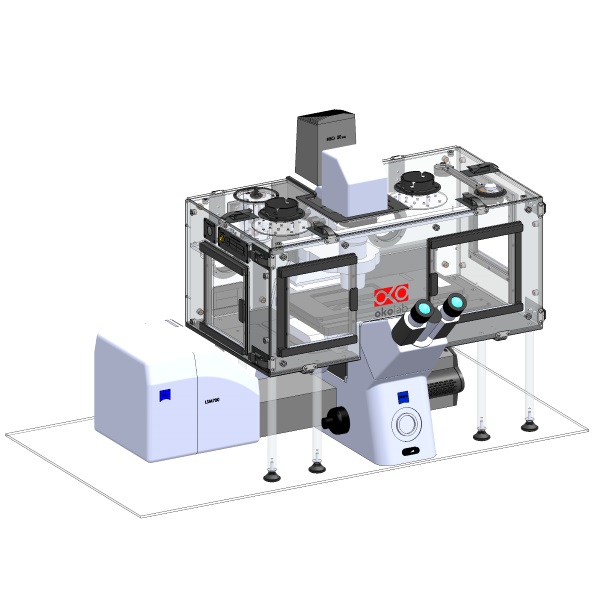

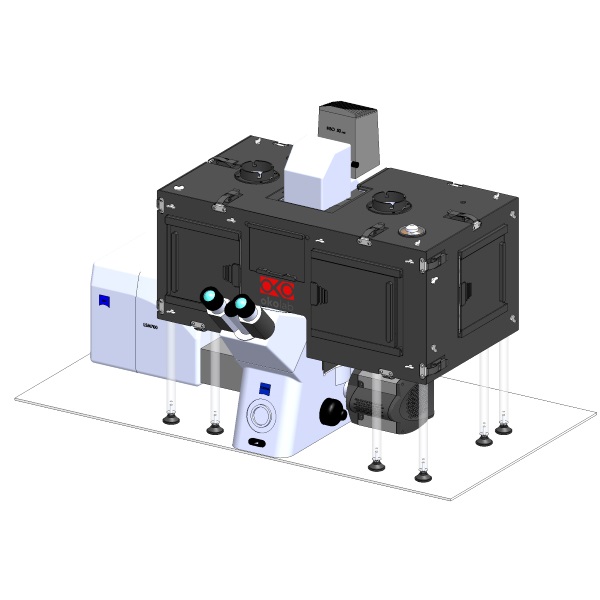

In this page we report drawings of the enclosure for two configurations, based on the ZEISS microscopes.




 Cell Observer SDLSM700 ConfocalApoTome
Body Axio Observer Z1 Axio Observer Z1 Axio Observer Z1 with Apotome Slider
Eyepiece Standard Standard Standard
XY-Stage Mechanical Stage 130x85 130x85 motorized Stage from Marzhauser 130x85 motorized Stage from Marzhauser
Back Port HBO 100 lamp with Illumination system Colibri HBO 100 lamp with Illumination system Colibri HBO 100 lamp with Illumination system Colibri
Left Port Yokogawa CSU-X1 Confocal Unit with Dual Axiocam LSM700 Confocal Unit AxioCam MRm
Right Port  Andor iXon EMCCDs  Andor iXon EMCCDs  Andor iXon EMCCDs
Nosepiece Definite Focus Definite Focus Definite Focus

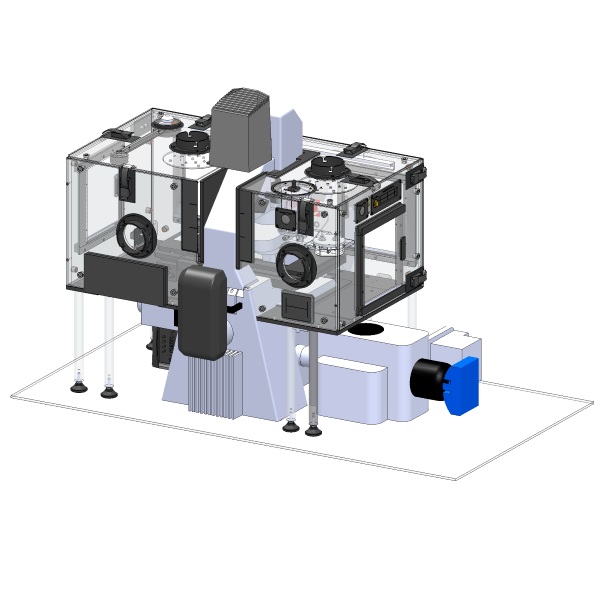

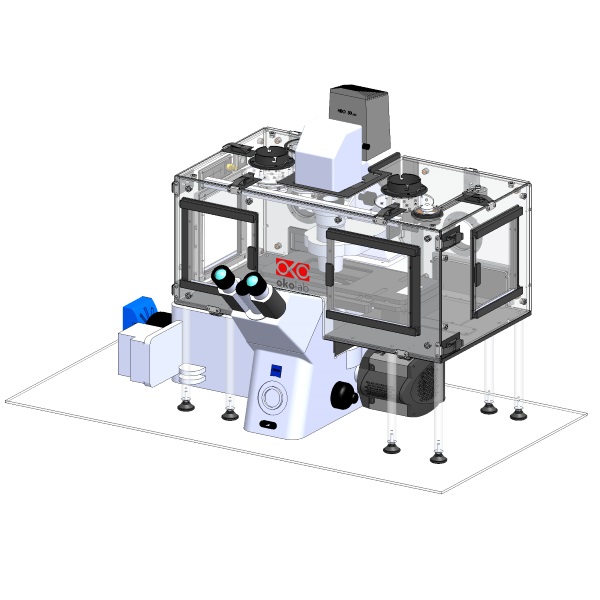

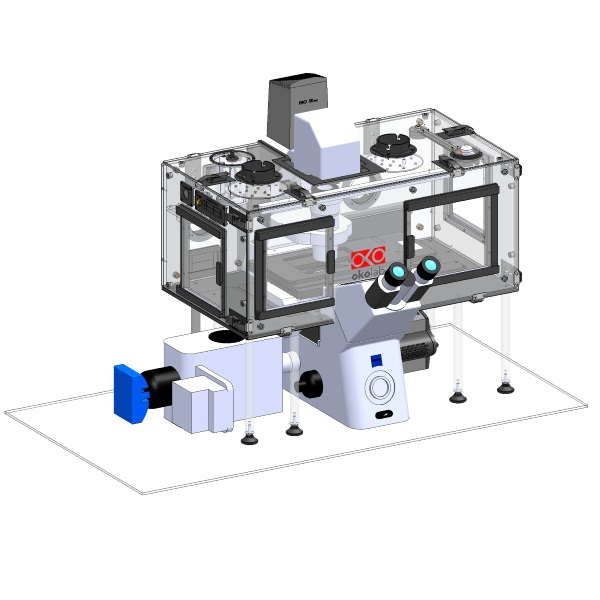

Zeiss Cell Observer SD
