H201-LUDL-96A602

Fits in the Ludl piezo stage 96A602 - comes with Koehler Lid

Magnetic inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates
Features:
  • Koelher Lid for Koelher Illumination - included
  • 12 perfusion holes available for 2.5 mm O.D. tubing
  • Chamber riser allows to increase the height to hows MW plates
  • Not compatible with Sliding Lid


Available Inserts

H201-MW-HOLDER Multiwell plates holder /H201-MW-HOLDER_600x600.JPG
1x35-M #1 35mm Petri-dish 1x35-M.JPG
1xGS-M #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG
1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG
1x60-M #1 60mm Petri-dish 1x60-M.JPG
1xT25-M #1 Nunc and Greiner T25 flask 1xT25-M.JPG
2x35-M #2 35mm Petri-dish 2x35-M.JPG
2xGS-M #2 1x3in. chamberslides 2xGS-M.JPG
2xLABTEK-M #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG
2xLABTEK-II-M #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG
2x60-M #2 60mm Petri-dish 2x60-M.JPG
4x35-M #4 35mm Petri-dish 4x35-M.JPG
GS35-M #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG
LABTEK-35-M #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG
LABTEK-II-35-M #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG
LABTEK-60-M #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG
LABTEK-II-60-M #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG
GS60-M #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG
6035-M #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

H201-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H201-KOEHLER-LID.JPG
H201-INJECTION-LID Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H201-INJECTION-LID.JPG
H201-LASER-INTERLOCK-LID Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H201-LASER-INTERLOCK-LID.JPG

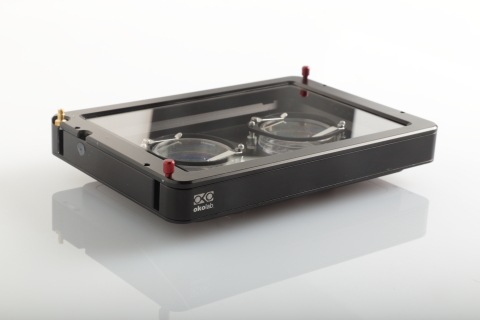

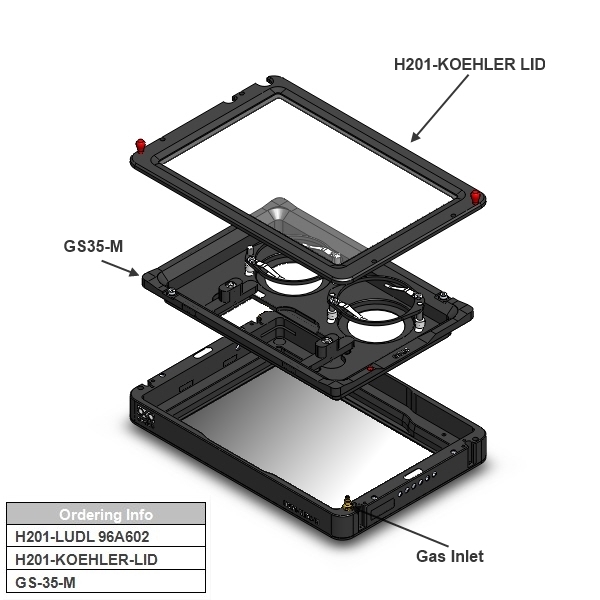

H201-LUDL-96A602 with Koehler Lid

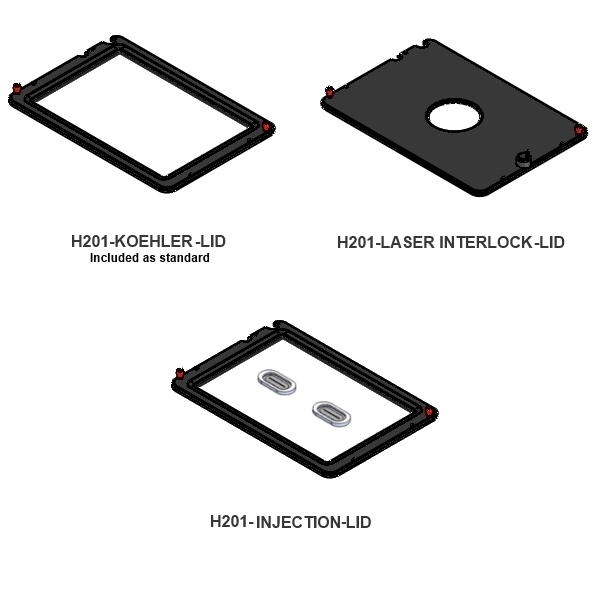

H201-LUDL-96A602 - Available Lids

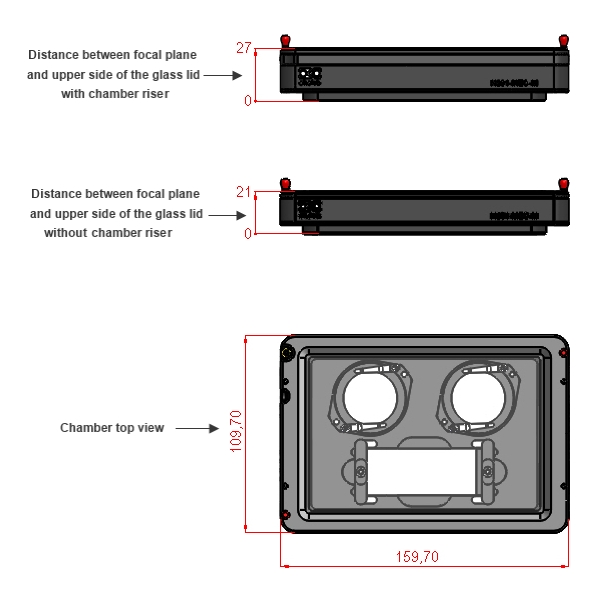

H201-LUDL-96A602 - Dimensions


H201-LUDL-96A602 - Magnetic inserts

H201-LUDL-96A602 - Magnetic insterts

H201-LUDL-96A602 - Magnetic Locks
