ENCLOSURE - EXAMPLES ON ANDOR

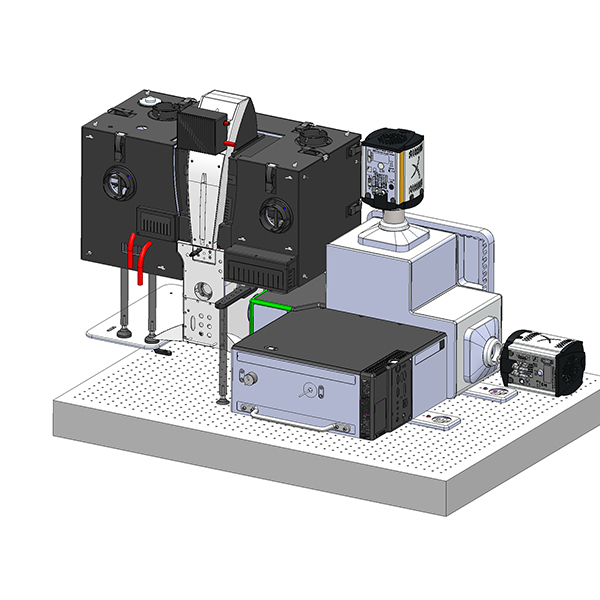

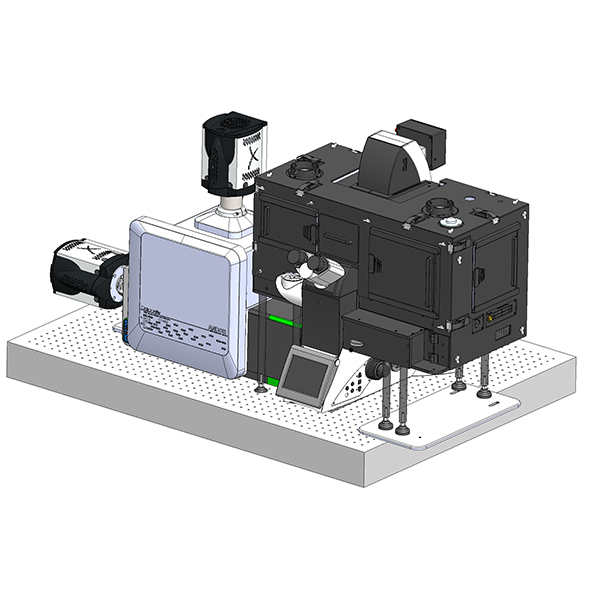

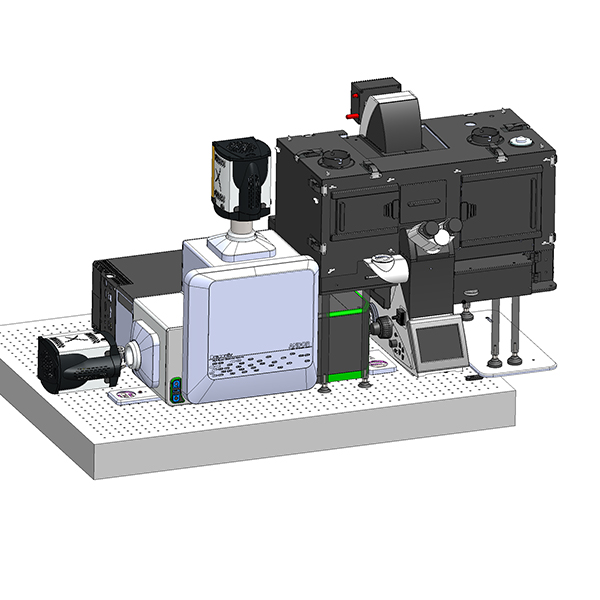

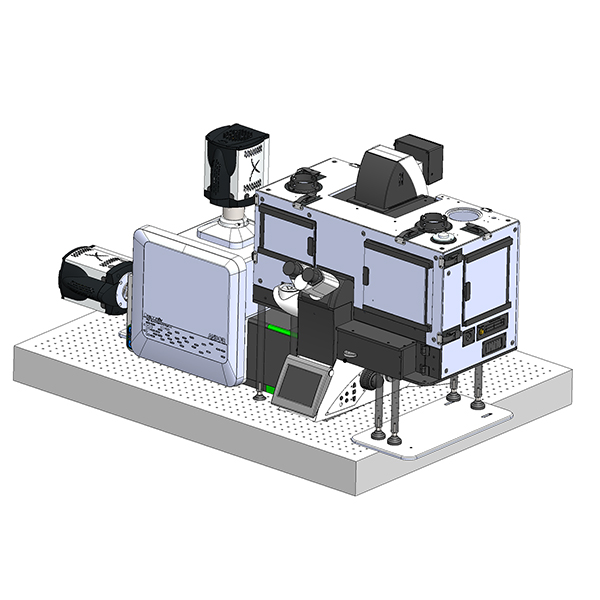

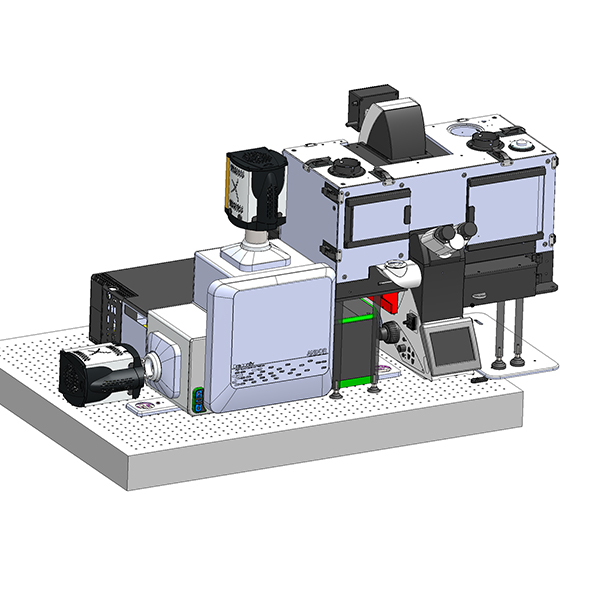

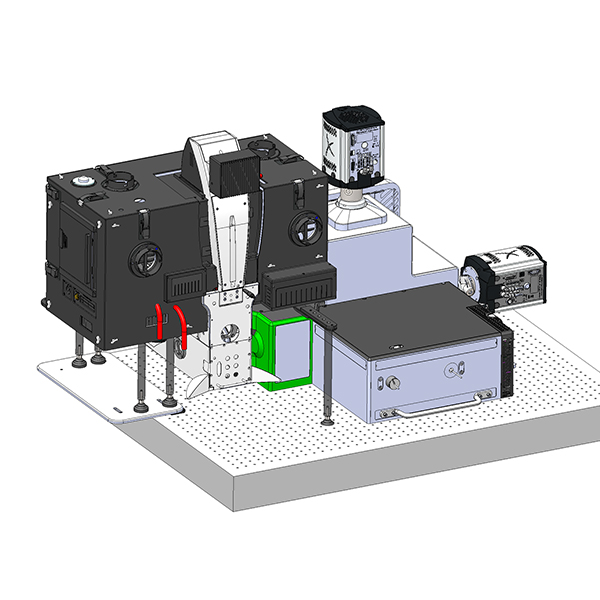

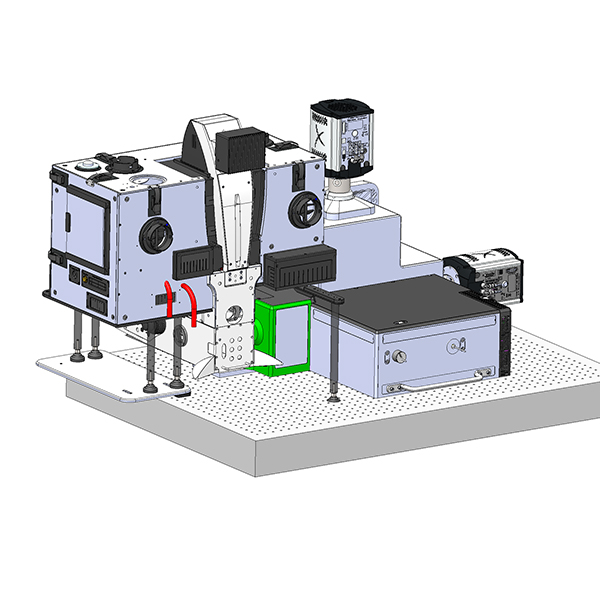

In this page we report drawings of the enclosure for two configurations, based on the ANDOR platform.




 Revolution WDRevolution DSD2
Body  Nikon TI Nikon TI
Eyepiece  Standard Standard
XY-Stage  Motorized Stage HLD117NN from Prior Motorized Stage HLD117NN from Prior
Back Port  Tirf Module none
Left Port  Confocal Unit CSU-W1 from Yokogawa with iXon EMCCD Camera and Neo cMOS camera Confocal Unit DSD2 with sCMOS camera Zyla
Right Port  iXon EMCCD  none

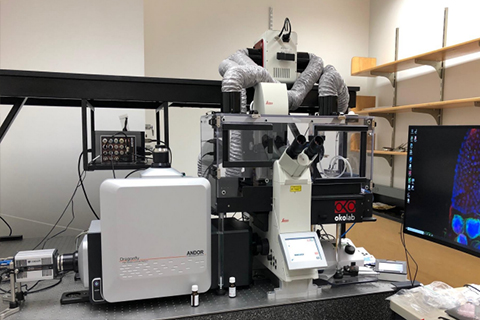

M012731 IICB India M012731 Indian Institute of Chemical Biology
(IICB) Calcutta, Bengal, INDIA

ANDOR Revolution WD
